Ball Trough Receiver Board (WPC-S/95/2K Version)

Pricing: $30.00 each + S/H






Picture 1

Click on the image for a larger version.

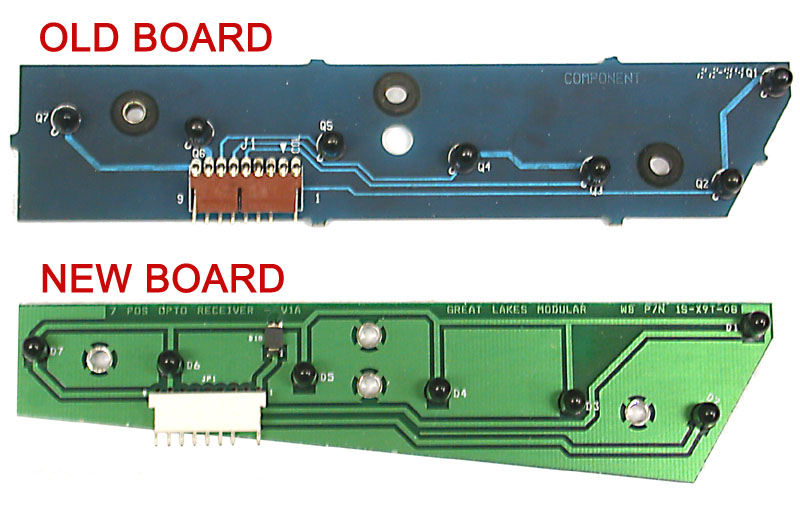

This board is a complete redesign of the ball trough opto receiver PCB that is used in all WPC-S, WPC-95, and Pinball 2000 Games:

The newly redesigned board has a number of significant advances that improve over the original:

  • Highly sensitive IR sensors, yet filters almost all visible light!
  • Tapered PCB conforms perfectly to the space provided and is significantly stiffer than the original, reducing board flex. Larger traces and pads for better reliability and longevity.
  • LEDs give quick diagnostics to help locate problems.

Also, don't forget to check out the WS95-TT transmitter board!

Warranty Information

Great Lakes Modular offers a 6-month limited warranty for this product against all workmanship defects! This warranty does not cover any damage caused from installation, modification, or use!

Liability Information

This product was designed as an aftermarket retro-fit into specific pinball machines only! Because Great Lakes Modular has no control over the conditions surrounding the installation and use of this product, the end user shall assume all liability and agrees to fully indemnify Great Lakes Modular and its agents, for any and all damages resulting from the installation and/or use of this product.

Technical Help

Should you encounter any problems with the opto board, please email us first! We will try to help as best we can to get the board installed and working!

Pricing: $30.00 each + S/H
