Star Post Light Boards

Pricing: $10.00 each + S&H (10+ $9 ea., 20+ $8 ea.)

This product was designed to add illumination and lighting effects to star posts and other areas commonly found scattered around the playfield on most pinball machines.


  • Now comes in six colors plus two whites!
  • Super thin construction allows board to fit nearly invisibly under most standard star posts.
  • Can be used for both general illumination and also as a flasher
  • Will flash when connected to any flasher or coil drive circuit
  • Now with Dual-Flash! Can now be connected to two separate flashing sources!
  • May be used in other areas where lighting is needed

Click on any image for a larger version.

Picture 1

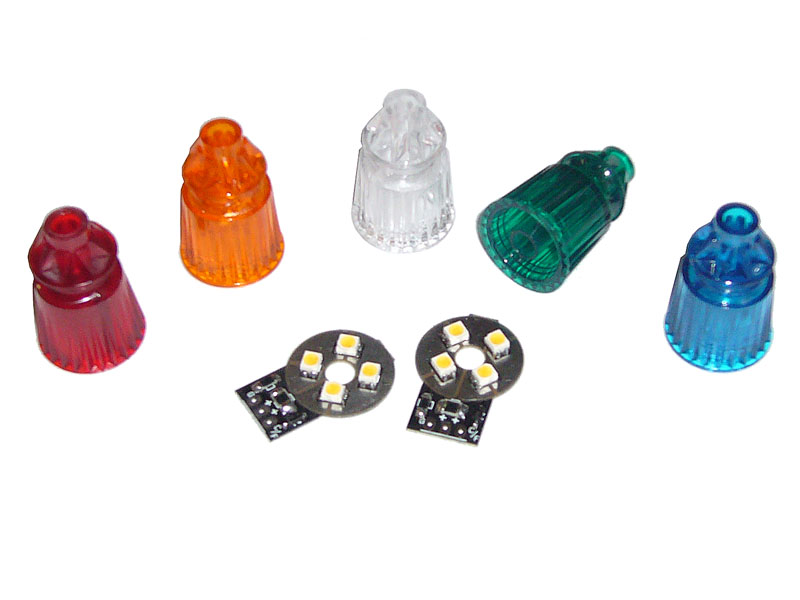

Two SPL boards shown (boards are sold individually).

Picture 2

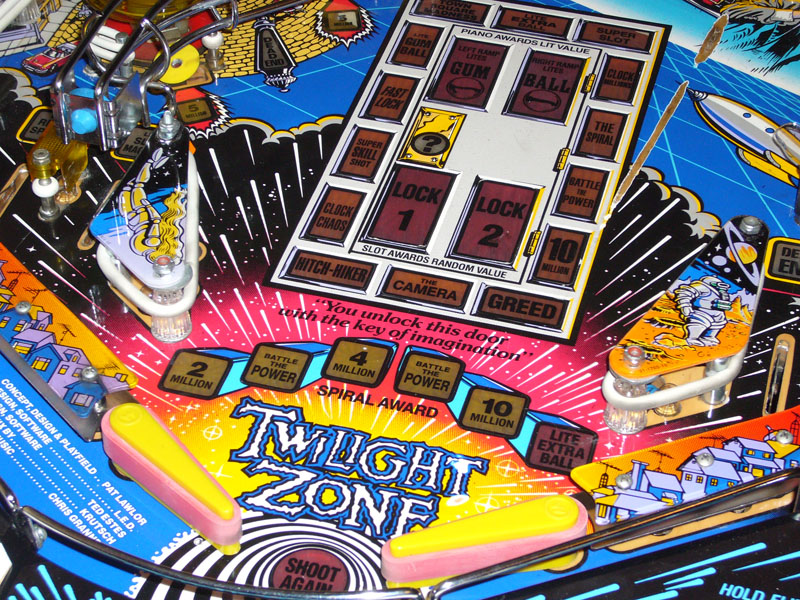

The warm white version was used on the Twilight Zone slingshot
posts to match the color of the incandescent bulbs.

Picture 3

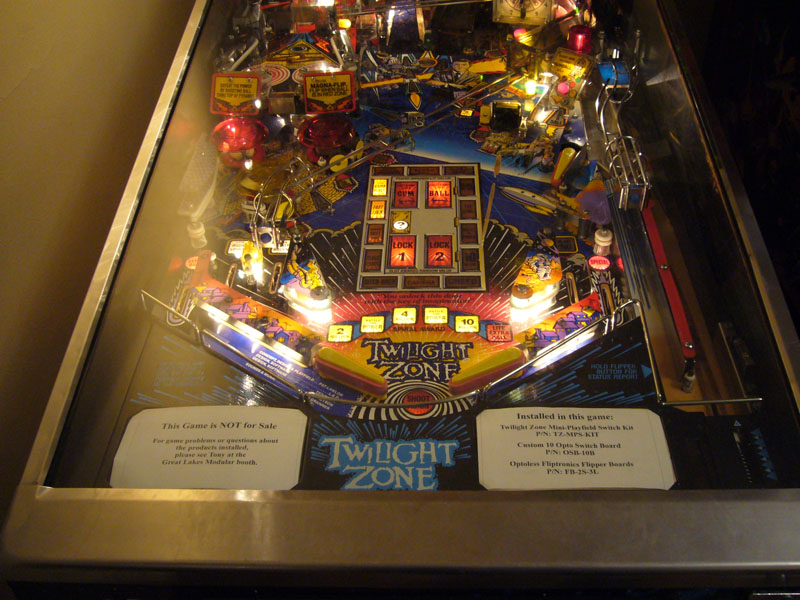

The spl-kits are hard to spot

Picture 4

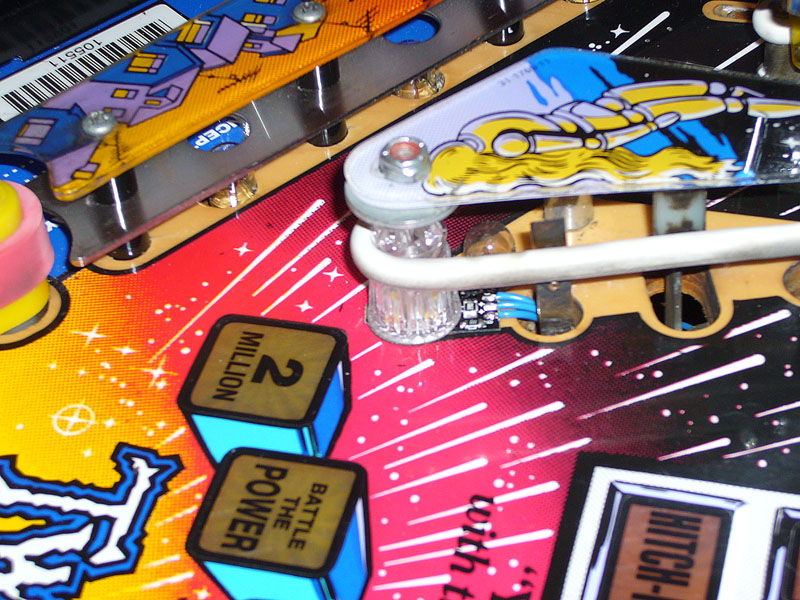

A side shot to show the exposed tab and wiring.

Picture 5

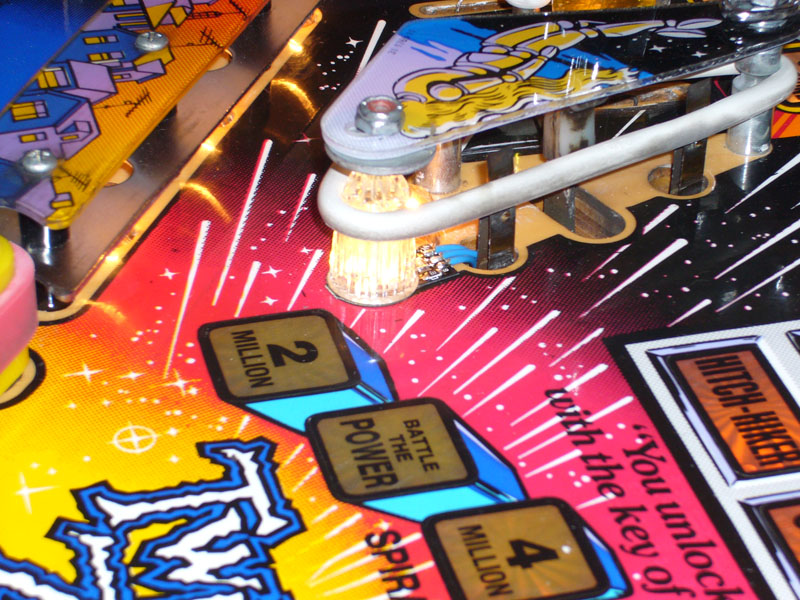

A close up shot of the warm white LED color.

Watch a video of the star post light board in action! The lower star post will flash when the slingshot coil is activated. Hover over image below for play controls.

Watch an impressive video of a Williams F14 fully decked out with GLM star post lights! Notice how the star post lights have been connected to flash to various different events in the game, creating a spectacular light show! A big round of thanks to John Kirby for creating this monster!

If the video does not show, try clicking here.

Listen to a detailed explanation on how to hook up star post lights in a Whitewater. Thanks to Mike Dallas for the video!

If the video does not show, try clicking here.


The star post lights are now available in a variety of colors plus two shades of white.

Use specific colored star post lights to reinforce a particular plastic color or to bring some unique color and effects to clear star posts!

Click on any of the links below to see examples of the currently available colors being used with various colored star posts. This may help you pick the right color to achieve the right look for your game.

Warranty Information

Great Lakes Modular offers a 6-month limited warranty for this product against all workmanship defects! This warranty does not cover any damage caused from installation, modification, or use!

Liability Information

This product was designed as an aftermarket retro-fit into specific pinball machines only! Because Great Lakes Modular has no control over the conditions surrounding the installation and use of this product, the end user shall assume all liability and agrees to fully indemnify Great Lakes Modular and its agents, for any and all damages resulting from the installation and/or use of this product.

Technical Help

Should you encounter any problems with this product, please email us first! We will try to help as best we can to get the board installed and working!

Pricing: $10.00 each + S&H (10+ $9 ea., 20+ $8 ea.)
