This board is a complete redesign of the flipper board found in all Williams/Bally games that use the Fliptronics system with Type 1 or Type 2 flipper boards. These include games as early as Getaway High Speed 2 and Twilight Zone, all the way through later WPC 95 games like Medieval Madness and Cactus Canyon!

This board also replaces our long running WPC-FB2 board.

NOTICE!

Please read the instruction manual that comes with this product before you install it!

---

Features

Replaces both Type 1 and Type 2 flipper boards! No optos to get dirty or plastic interrupters to warp or break! Virtually indestructible spring steel actuator for ultra long life. Adjustable spring tension for the precise button feel you want! Adjustable double-flip action for games with more than 2 flippers! Visual status LEDs for easy adjustment and quick diagnostics.

---

Click on any image for a larger version.

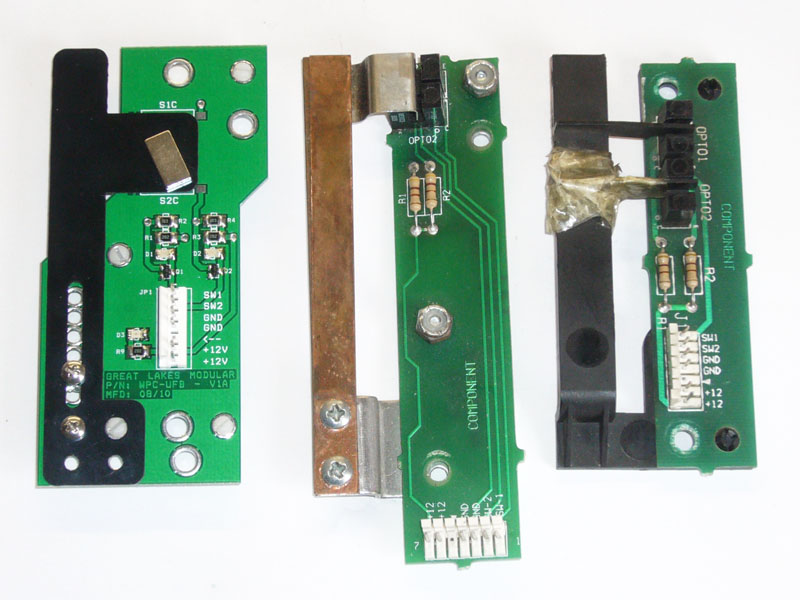

New board (left), Type 1 (center), Type 2 (right)

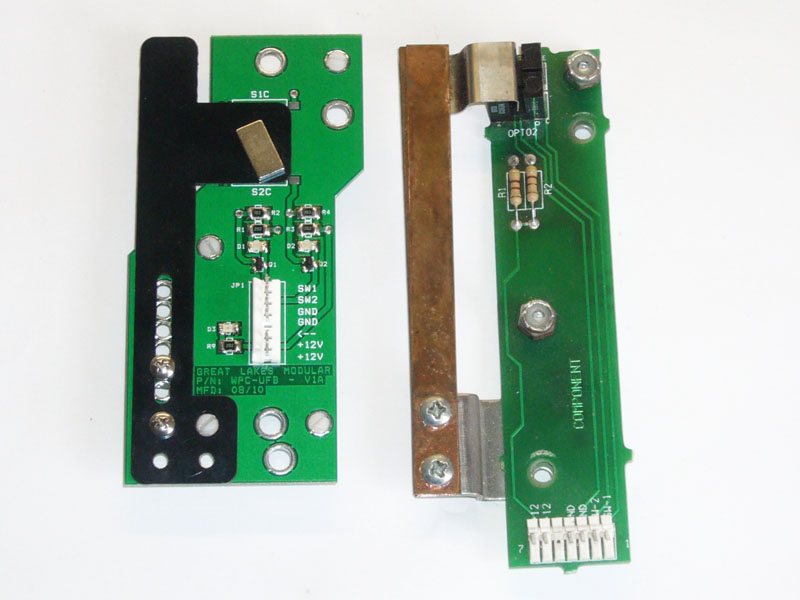

New board (left), Type 1 (right)

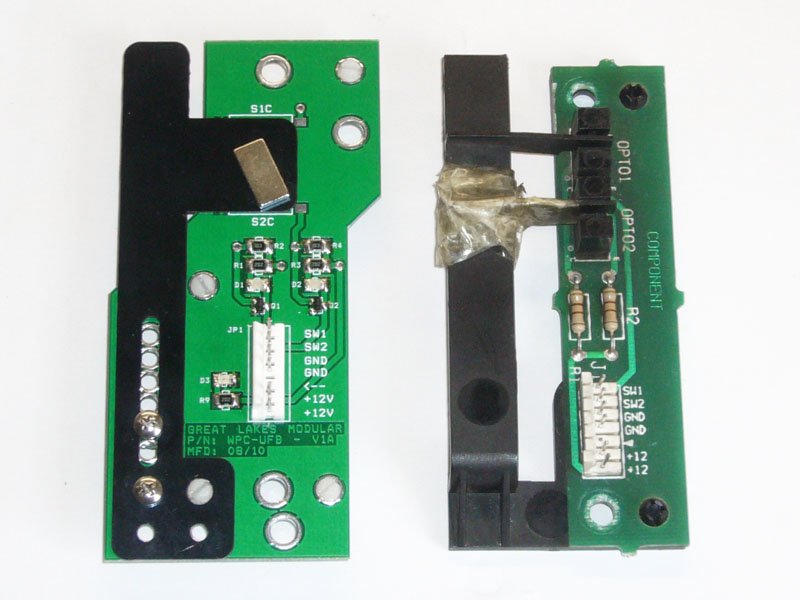

New board (left), Type 2 (right)

---

Click on any image for a larger version.

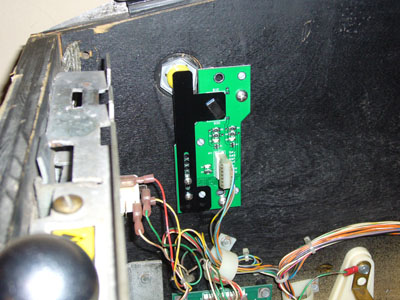

The new flipper board installed in a Twilight Zone (Type 1 replacement).

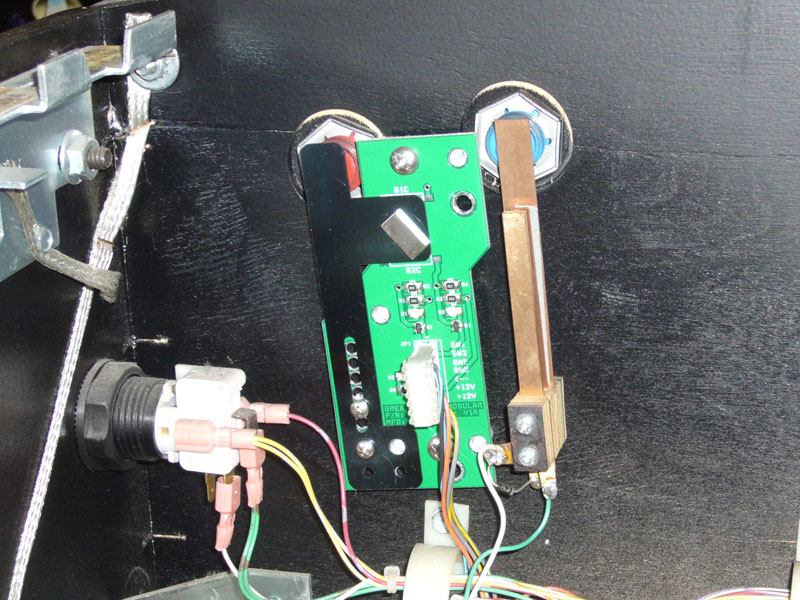

The new flipper board installed in a Shadow (Type 2 replacement).

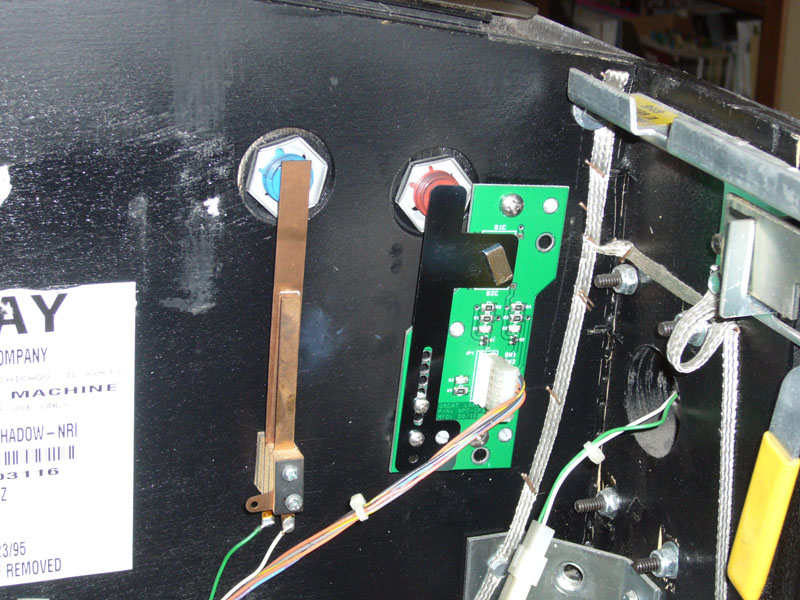

The new flipper board installed in a Shadow (left side).

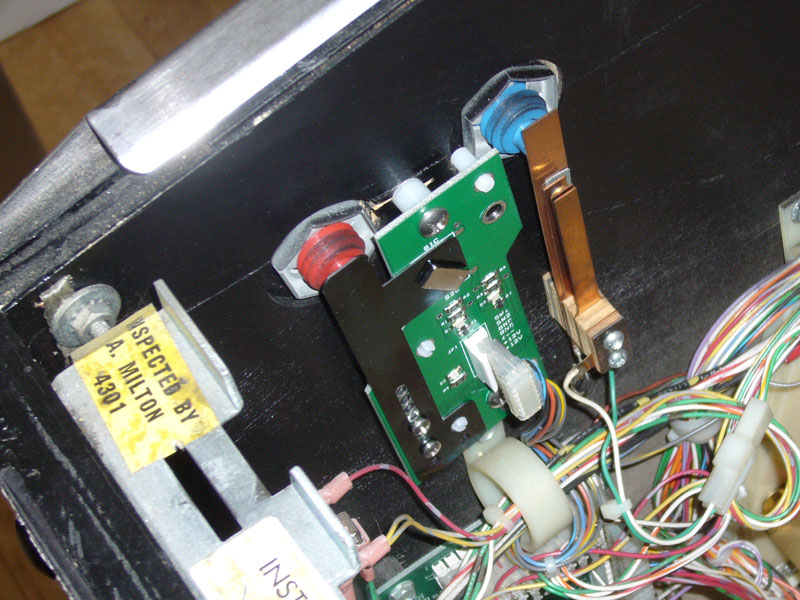

Detail of clearance on Shadow.

---

Warranty Information

Great Lakes Modular offers a 6-month limited warranty for this product against all workmanship defects! This warranty does not cover any damage caused from installation, modification, or use!

Liability Information

This product was designed as an aftermarket retro-fit into specific pinball machines only! Because Great Lakes Modular has no control over the conditions surrounding the installation and use of this product, the end user shall assume all liability and agrees to fully indemnify Great Lakes Modular and its agents, for any and all damages resulting from the installation and/or use of this product.

Should you encounter any problems with the flipper board, please email us first! We will try to help as best we can to get the board installed and working!
