WPC-PEB
Position Encoder Board

Pricing: $25.00 + S/H


Cross-Reference

OEM P/N #

A-20533

PCB #

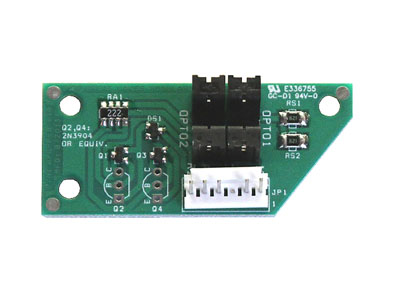

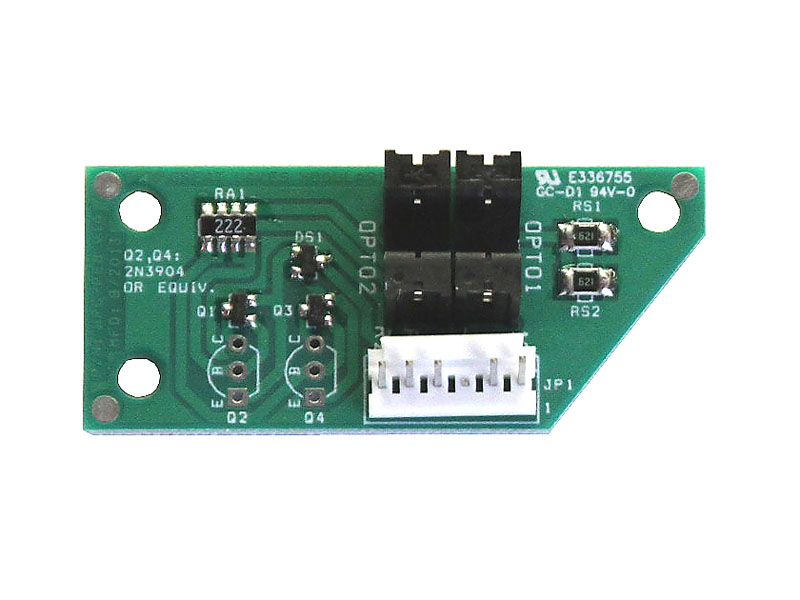

This board is an updated version of the position encoder board that is used on Johnny Mnemonic and Champion Pub.


Click on any image for a larger version.

Picture 1

Picture 1

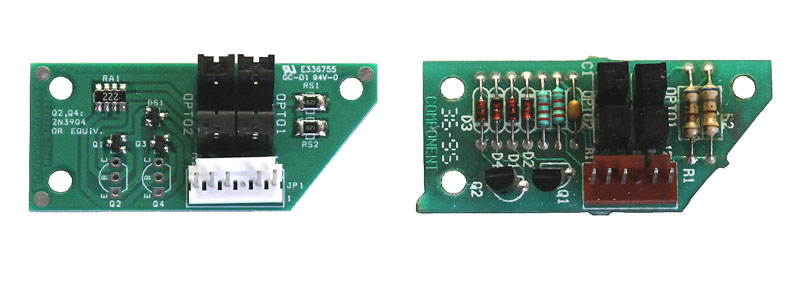

New board (left), old board (right).

The newly redesigned board has a number of significant advances that improve over the original:

  • Lower current consumption and less heat, for longer life.
  • User serviceable with transistors that are replaceable with thru-hole equivalents!


Warranty Information

Great Lakes Modular offers a 6-month limited warranty for this product against all workmanship defects! This warranty does not cover any damage caused from installation, modification, or use!

Liability Information

This product was designed as an aftermarket retro-fit into specific pinball machines only! Because Great Lakes Modular has no control over the conditions surrounding the installation and use of this product, the end user shall assume all liability and agrees to fully indemnify Great Lakes Modular and its agents, for any and all damages resulting from the installation and/or use of this product.

Technical Help

Should you encounter any problems with the product, please email us first! We will try to help as best we can to get the board installed and working!


Pricing: $25.00 + S/H
