Twilight Zone Door Panel Insert Board

Pricing: $120.00 + S/H


Replaces all of the following:

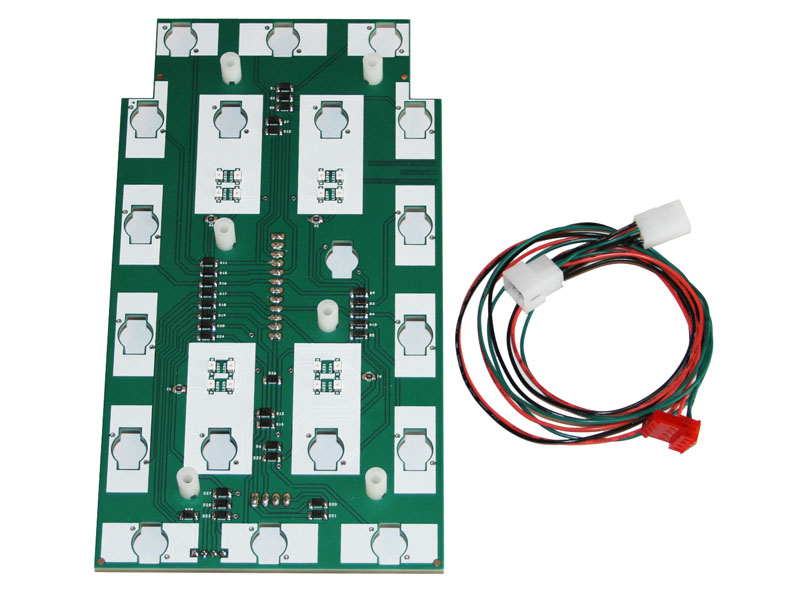

Picture 1

This kit replaces the factory door panel light board and puts back in the four flashers that were originally found on the prototype games.

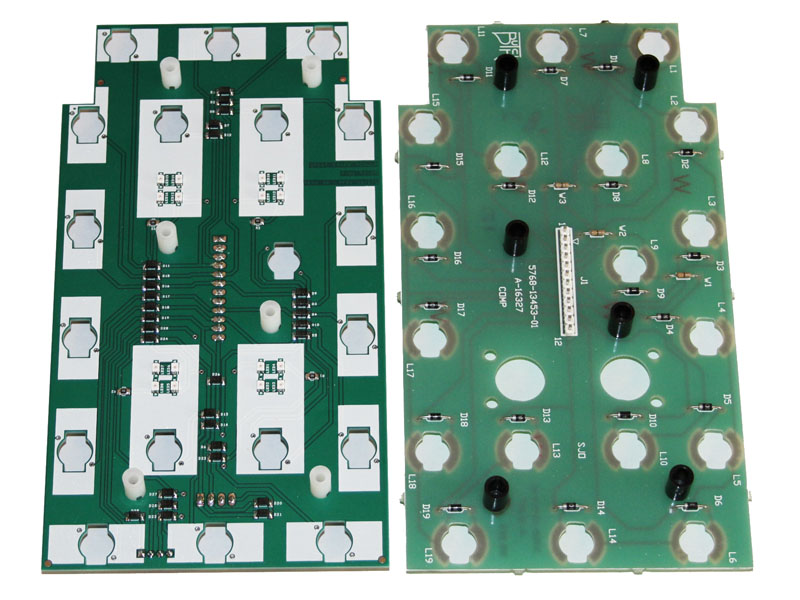

Picture 2

Top side comparison between the new board (left) and a production board (right). The sample/production boards have two large holes for the GUM and BALL flashers but none for the LOCK flashers. Most aftermarket kits only replace the GUM and BALL flashers.

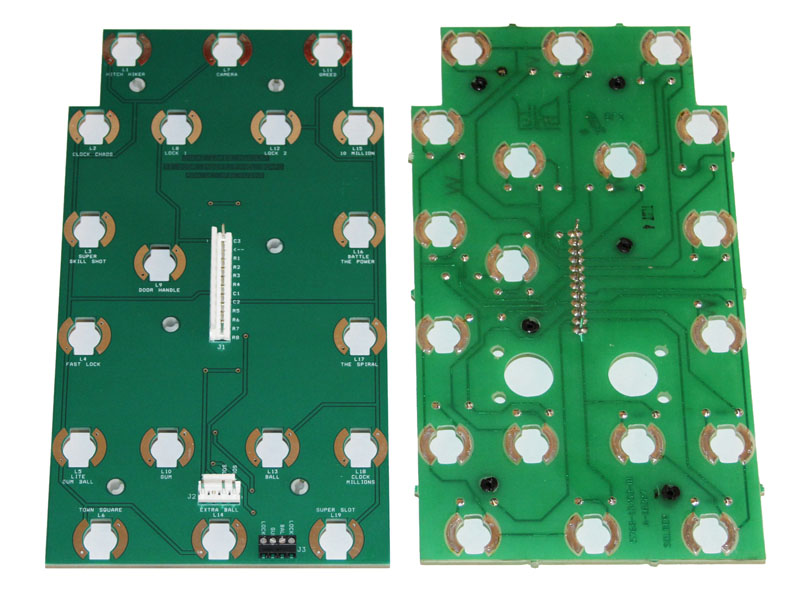

Picture 3

Bottom side comparison between the new board (left) and a production board (right).

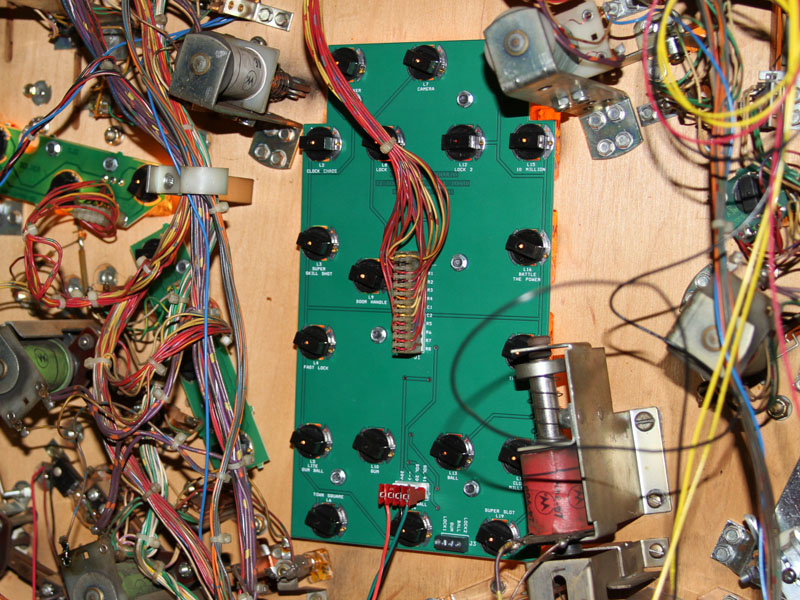

Picture 4

The new board installed in the game.

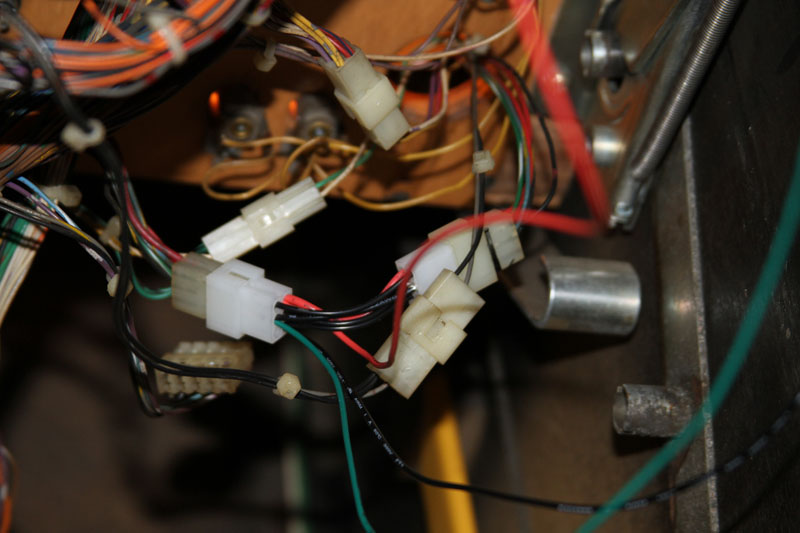

Picture 5

Details of the flasher wiring harness plugged in. Seamless!

Watch a video of the new board in attract mode!

Watch a video of the new board with all four flashers in action!

Warranty Information

Great Lakes Modular offers a 6-month limited warranty for this product against all workmanship defects! This warranty does not cover any damage caused from installation, modification, or use!

Liability Information

This product was designed as an aftermarket retro-fit into specific pinball machines only! Because Great Lakes Modular has no control over the conditions surrounding the installation and use of this product, the end user shall assume all liability and agrees to fully indemnify Great Lakes Modular and its agents, for any and all damages resulting from the installation and/or use of this product.

Technical Help

Should you encounter any problems with the product, please email us first! We will try to help as best we can to get the board installed and working!
