Theatre of Magic Trunk Wide-Slot Opto Board

Pricing: $40.00 each + S/H

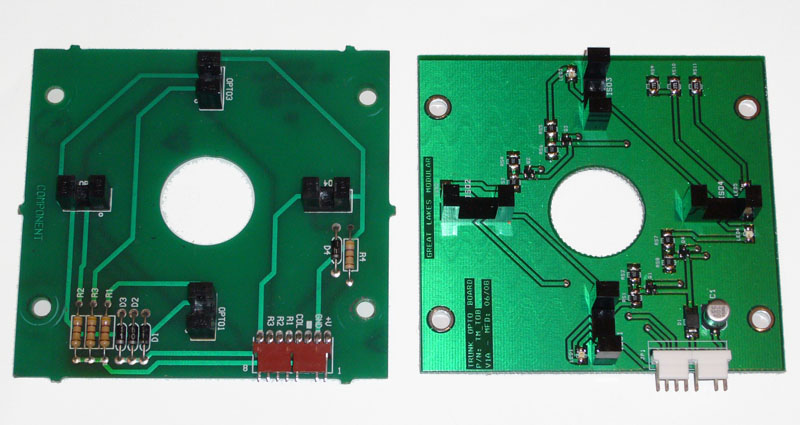

This board is a complete redesign of the opto PCB used on the trunk assembly of the Theatre of Magic pinball machine.

This board has four optical switches that help locate the position of the trunk as it rotates around during game play. The central shaft on the assembly has a plastic interrupter disc with one slot cut in it. As this slot passes through the optical switches, the game knows when to stop the trunk assembly.


  • Wide-slot optical switches eliminates any possibility of rubbing of the plastic interrupter disc.
  • Larger traces and pads for better reliability and longevity.

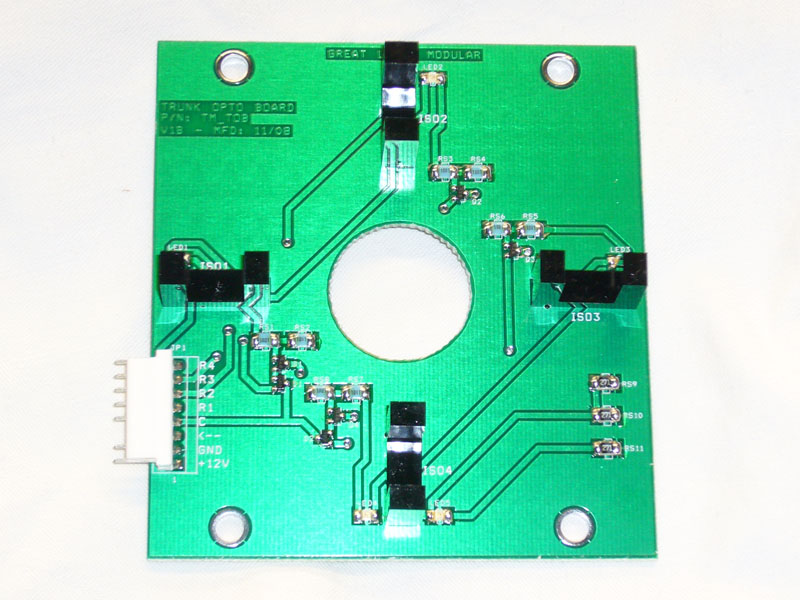

  • Visual status LEDs have been added so that the four optical switches can be easily checked. They also help in the precise positioning of the trunk.

Click on any image for a larger version.

Picture 1

Picture 2

Watch a video of the new board in action!
Hover over image below for play controls.

Warranty Information

Great Lakes Modular offers a 6-month limited warranty for this product against all workmanship defects! This warranty does not cover any damage caused from installation, modification, or use!

Liability Information

This product was designed as an aftermarket retro-fit into specific pinball machines only! Because Great Lakes Modular has no control over the conditions surrounding the installation and use of this product, the end user shall assume all liability and agrees to fully indemnify Great Lakes Modular and its agents, for any and all damages resulting from the installation and/or use of this product.

Technical Help

Should you encounter any problems with the opto board, please email us first! We will try to help as best we can to get the board installed and working!
