Judge Dredd Deadworld Wide-Slot Opto Board

Pricing: $25.00 each + S/H





This board is a complete redesign of the opto PCB used on the deadworld assembly of the Judge Dredd pinball machine.

This board has two optical switches that help locate the position of the ball pockets on the deadworld assembly. The central shaft on the assembly has a plastic disc with two slots cut in it. As these slots pass through the two optical switches, the game knows when to stop the deadworld assembly to unload a ball from the globe ring.

The original optical switches are so close together that the plastic disc on the deadworld shaft can rub and cause plastic dust to form on the optical switches.

The re-designed opto board uses wide-slot optical switches to eliminate this problem. It also includes visual indicator LEDs to help in the diagnostics and setup of the deadworld assembly!


  • Wide-slot optical switches eliminates any rubbing of the plastic interrupter disc.
  • Larger traces and pads for better reliability and longevity.
  • Visual status LEDs have been added so that the two optical switches can be easily checked. They also help in the precise positioning of the deadworld assembly.

Click on any image for a larger version.

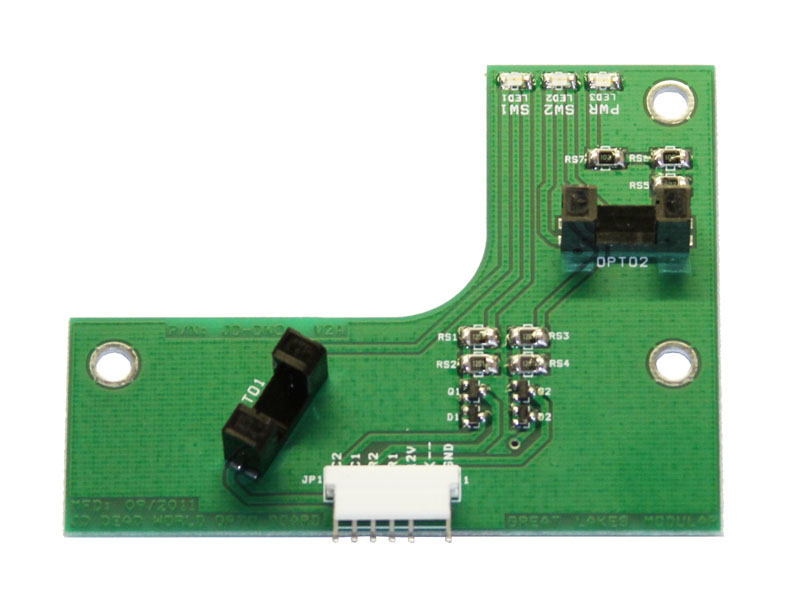

Picture 1

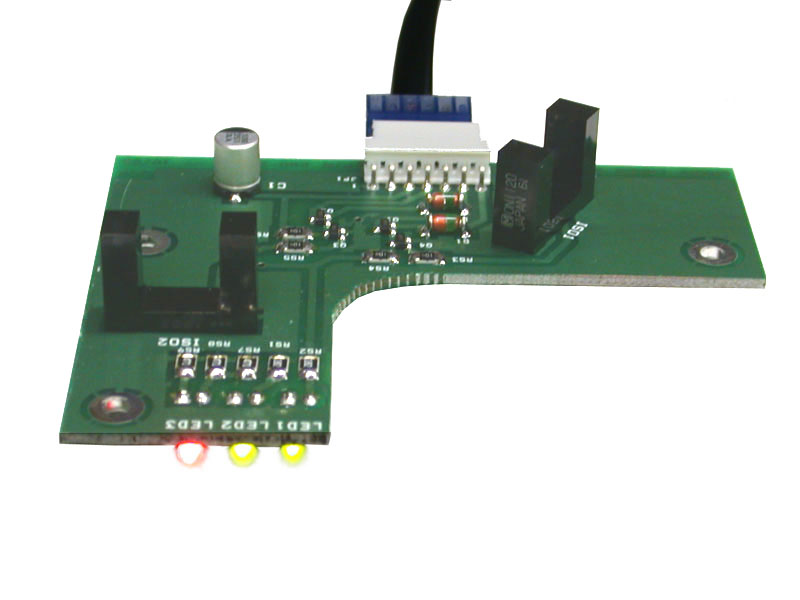

Picture 2
Older version shown above.

Warranty Information

Great Lakes Modular offers a 6-month limited warranty for this product against all workmanship defects! This warranty does not cover any damage caused from installation, modification, or use!

Liability Information

This product was designed as an aftermarket retro-fit into specific pinball machines only! Because Great Lakes Modular has no control over the conditions surrounding the installation and use of this product, the end user shall assume all liability and agrees to fully indemnify Great Lakes Modular and its agents, for any and all damages resulting from the installation and/or use of this product.

Technical Help

Should you encounter any problems with the opto board, please email us first! We will try to help as best we can to get the board installed and working!

Pricing: $25.00 each + S/H
