DW-TBS
Doctor Who 5 Bank Target Opto Board Set

Pricing: $40.00 + S/H


Cross-Reference

Receiver

OEM P/N #

A-15432
A-15500

PCB #

5768-13195-00
5768-13195-01

Transmitter

OEM P/N #

A-15431
A-15500

PCB #

5768-13196-00
5768-13196-01


This product replaces the both the transmitter and receiver boards in the 5 bank target on the mini-playfield of the Doctor Who pinball machine.


The newly redesigned board has a number of significant advances that improve over the original:

  • Stiffer board construction to help keep optos in line.
  • Original factory style receiver optos to prevent rubbing or binding of the targets


Click on any image for a larger version.

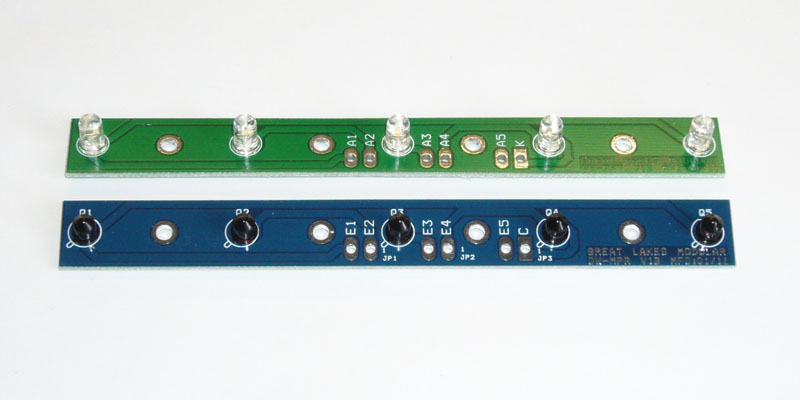

Picture 1

Picture 2

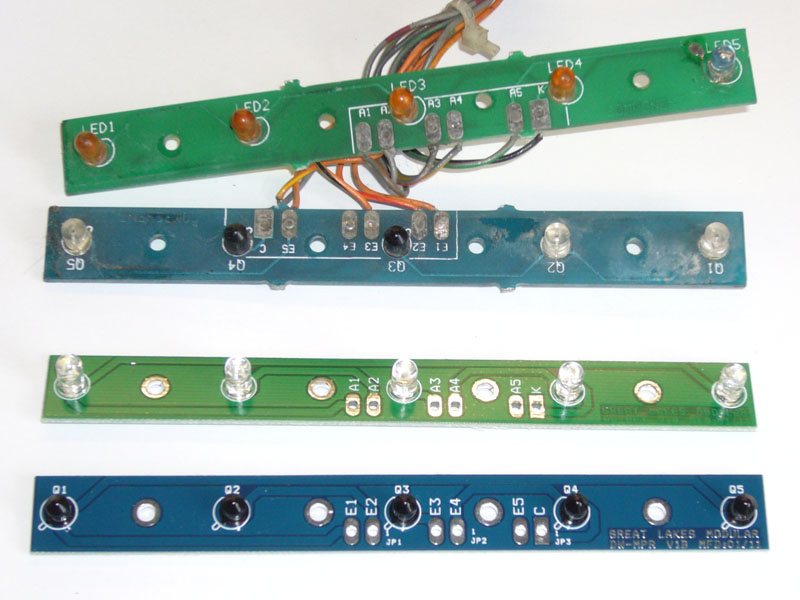

A comparison of the new boards (bottom) and the original boards (top).

Warranty Information

Great Lakes Modular offers a 6-month limited warranty for this product against all workmanship defects! This warranty does not cover any damage caused from installation, modification, or use!

Liability Information

This product was designed as an aftermarket retro-fit into specific pinball machines only! Because Great Lakes Modular has no control over the conditions surrounding the installation and use of this product, the end user shall assume all liability and agrees to fully indemnify Great Lakes Modular and its agents, for any and all damages resulting from the installation and/or use of this product.

Technical Help

Should you encounter any problems with the product, please email us first! We will try to help as best we can to get the board installed and working!


Pricing: $40.00 + S/H
