CFF-GBS
Capcom Flipper Football Goal Board Set

Pricing: $60.00 per set + S/H


Cross-Reference

Receiver

OEM P/N #

PCB #

B0023701

Transmitter

OEM P/N #

PCB #

B0023601

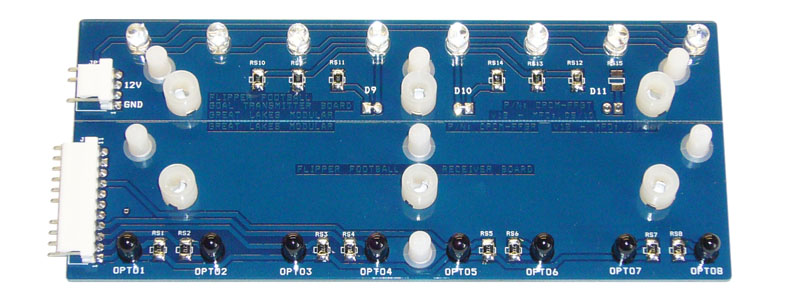

This product includes both the transmitter and receiver boards for the Capcom Flipper Football goal assembly. The original factory assembly has a number of faults that prevent most games from working correctly. These redesigned boards solve all of these issues without any modifications to the goal assembly!


Click on any image for a larger version.

Picture 1

The original goal design has the receiver and transmitter boards attached to the goal assembly by very skinny posts, all of which are in a straight line. The transmitter board is also very thin and has a number of ventilation holes for dissipating heat. Unfortunately the heat and thin construction of the transmitter board and the skinny mounts cause the board to twist during play. This causes the optos to mis-align and causes the game to think a goal has been registered when it hasn't.

The new boards use large posts which fit over the original skinny posts, plus have additional standoffs which are strategically placed to prevent board twist and opto mis-alignment. The boards themselves are also much stiffer to prevent board flex. Finally, the transmitter boards operate much cooler than the originals, eliminating heat warp.


The newly redesigned board has a number of significant advances that improve over the original:

  • Less heat generated - no more board warp from heat.
  • Better board construction with large traces and pads for more reliability.
  • Larger board mounts and standoffs to eliminate opto mis-alignment.


Click on any image for a larger version.

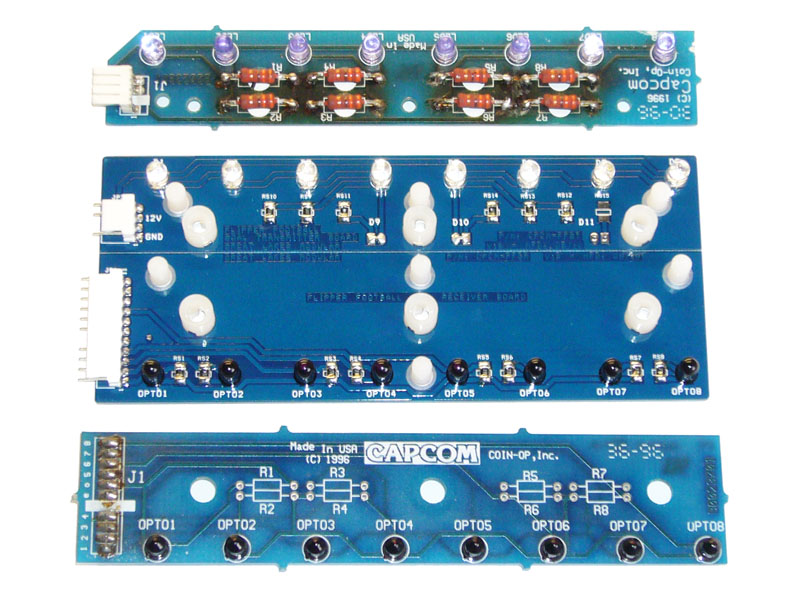

Original board (top and bottom) and the new versions.

Picture 1

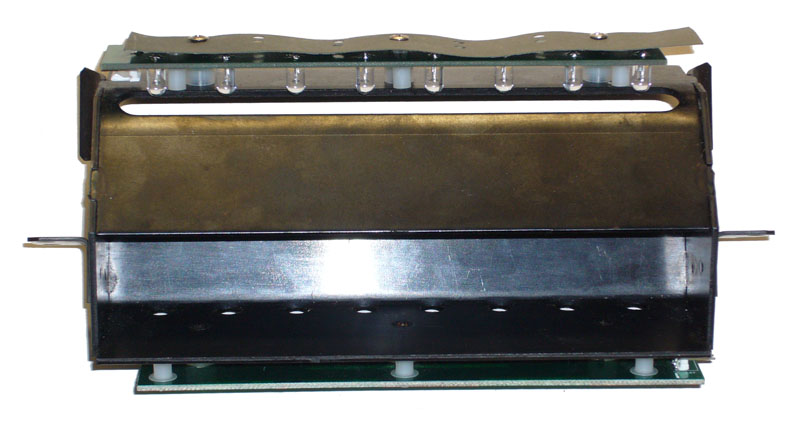

Both boards attached to the goal assembly (older version shown below).

Picture 3

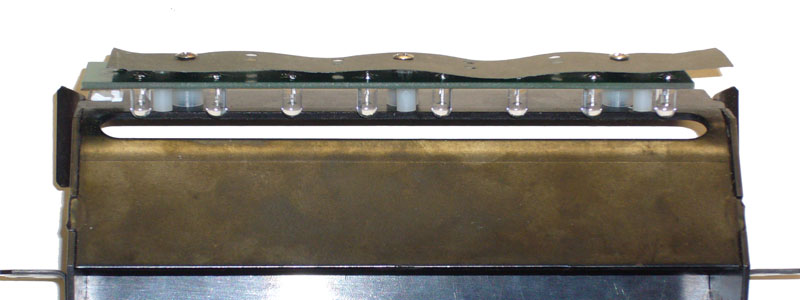

Closeup of transmitter board mounted to goal assembly.

Picture 2

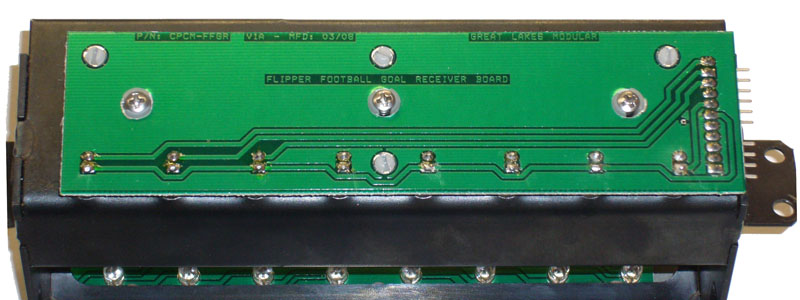

Closeup of receiver board mounted to goal assembly.

Picture 2

Warranty Information

Great Lakes Modular offers a 6-month limited warranty for this product against all workmanship defects! This warranty does not cover any damage caused from installation, modification, or use!

Liability Information

This product was designed as an aftermarket retro-fit into specific pinball machines only! Because Great Lakes Modular has no control over the conditions surrounding the installation and use of this product, the end user shall assume all liability and agrees to fully indemnify Great Lakes Modular and its agents, for any and all damages resulting from the installation and/or use of this product.

Technical Help

Should you encounter any problems with the opto boards, please email us first! We will try to help as best we can to get the board installed and working!


Pricing: $60.00 per set + S/H

Please note that at this time, these boards are only available as a set. They are not available individually!
